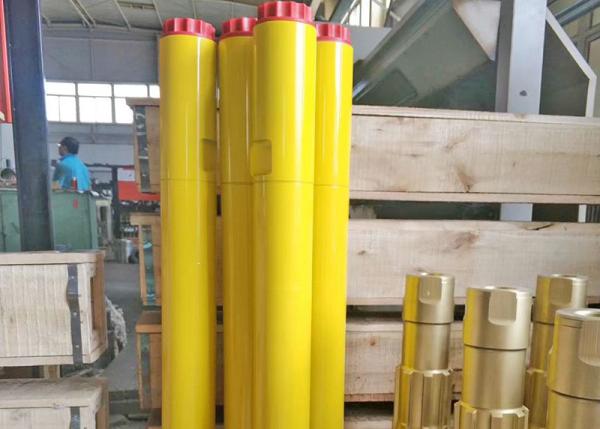

6 Inch DTH Water Well Drilling Tools Tungsten Carbide / Steel Material

Description

DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.
We offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.

Application

The optimum range of hole size for blast hole drilling with DTH is 90 mm to 254 mm (3 ½”–10″). Smaller blast holes are generally drilled using tophammer, and larger holes generally use rotary machines.
In other applications, like foundation drilling, DTH hammers can be used with single bit in hole sizes up to . 750 mm (30″). With multiple hammer units CD (Cluster drills) drill holes up to 70″ or 1778 mm.
As a rule of thumb, the smallest hole diameter a DTH hammer can drill is its nominal size. A 4 inch hammer will drill a 4 inch (102 mm) hole. The limiting factor is the outside diameter of the hammer, because, as hole diameter reduces, airflow is restricted. Maximum hole size for production drilling is the nominal hammer size plus 1 inch, so for a 4 inch hammer the maximum hole size is 5 inch (127–130 mm).
Choosing the right hammer is largely determined by hole size and type of rock formation. Ideally, the size of the hammer should match the required hole dimension as closely as possible, leaving just enough space for cuttings to evacuate the hole.

Advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life span, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

DTH hammers specifications:

Technical description.
The DTH dill comprise a narrow elongated tube which contains an impact piston, internal cylinder, air
distributor, check valve. The real, threaded top sub is fitted with a spanner slot and coupling thread for
connection to the drill tubes. The forward part, the driver check, also fitted with thread, enclose the
splines-equipped bit shank and thansfers feed force as well as rotation to the drill bit. A stop ring limits
axial movements of the drill bit. The purpose of the check valve is to prevent impurities from penetrating
the rock drill when pressedair is shut off. During drilling, the drill bit is with drawn inside the DTH and
pressed against the drive chuck. The piston strikes directly against impact surface of the shank of the bit.

Packing&Delivery

FAQ
1. Shipping time for an order
We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
2. Quality Control
Strict inspection and testing for every order before shipping out .
3.How can we trust your company?
We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
4. After Sales Service
Free replacement will provide once the failure confirmed caused by our product quality.

Beijing Jincheng Mining Technology Co.,Ltd(JCDRILL) located in Beijing,China, for more than 20 years we have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and perfect service network, which establish our brand “JCdrill” a good image of market, now, JC products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

Now, our factories for rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories occupy an area of 9625 square meters with more than 500 employees, including twenty six engineers from Ingersoll Rand and former Xuanhua Mining Machinery company, with excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad. Meanwhile, we are agent of movable double screw air compressor of Atlas Copco,Sullair, Liutech,by which ,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.

JCdrill will always focus on the strategic conception of “Survival by quality, Development by credit’’, to provide users with high quality drilling solutions.In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
