Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe

Beijing Jincheng Mining Technology Co., Ltd.
Contact Now
    Buy cheap Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe from wholesalers

    Buy cheap Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe from wholesalers
    • Buy cheap Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe from wholesalers
    • Buy cheap Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe from wholesalers

    Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe

    Ask Lasest Price
    Brand Name : Jincheng Drilling Tools
    Model Number : All
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/P, D/A
    Supply Ability : 10000pcs/year
    Delivery Time : 3-15days
    • Product Details
    • Company Profile

    Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe

    Durable Wireline Drill Rods Rock Drilling Tools Hole Diameter Drill Pipe


    Description:

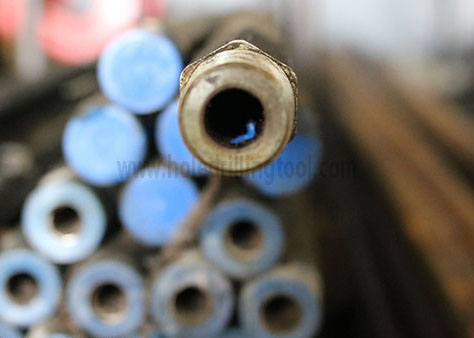

    This kind of casing tube is able to stabilize the borehole during the drilling process. It has two different functions: firstly, it can help to prevent the well walls from collapsing, as well as to control the formation fluids. Secondly, it enables both well control equipment and downhole equipment to more easily achieve their functions.
    Besides, it suits a wide variety of well diameters as well as different material grades. It is resistant to chemical erosion, and it can withstand various external forces, like collision, bursting, tensile strength, etc.
    The specifications of the casing tubes vary according to different drilling technologies. And the connection mode can be self-connection as well as connected through joints. The materials of drill pipe are generally above the DZ50 level.
    Regarding the packaging, slotted steel framing is utilized. There are 30 to 40 tubes per bundle, and each bundle need one frame.



    Note
    1. During the operation process, workers need to check whether there are any damages at the tread connection point of the casing tubes. If there are any damages, please replace it immediately so as to avoid tripping when using this casing tube.
    2. Suitable casing tube is always required, which can prevent it from being hit or friction.
    3. When connecting the casing tubes, thread oil is quite necessary.

    Parameters

    NoITEMODIDThread typeweight (kg/m)
    1Φ7373.565.57
    2Φ8989819.4
    3Φ108108.599.512
    4Φ127 Φ146127.5 146.5118 137China-standarded strip connectors14 18
    5Φ16816815428
    6Φ17817816430
    7Φ19419418133

    DescriptionODODWeight
    AW 3.0m(10') CASING57.10(mm)48.40(mm)17 (kg/3m)
    AW 1.5m(5') CASING2.25(in)1.91(in)38(Ib/10ft
    BW 3.0m(10') CASING73.00(mm)60.30(mm)31.30(kg/3m)
    BW 1.5m(5') CASING2.88 (in)2.38(in)70 ( Ib/10ft)
    NW 3.0m(10') CASING
    NW 1.5m(5') CASING88.90(mm) 3.5(in)76.20(mm) 3.00 (in)38.4(kg/3m) 86(lb/10ft)
    NW 1.0m(2') CASING
    HW 3.0m(10') CASING
    HW 1.5m(5') CASING114.30(mm) 4.50(in)101.60(mm) 4.00 (in)52.20(kg/3m) 117.00(lb/10ft)
    HW 1.0m(2') CASING
    HWT 3.0m(10') CASING
    HWT 1.5m(5') CASING114.30(mm) 4.50(in)101.60(mm) 4.00 (in)52.20(kg/3m) 117.00(lb/10ft)
    HWT 1.0m(2') CASING
    PW 3.0m(10') CASING
    PW 1.5m(5') CASING139.70(mm) 5.50(in)127.00(mm) 5.00 (in)64.30 (kg/3m) 144.00(lb/10ft)
    PW 1.0m (2') CASING

    Welcome contact me for detail informations.

    Service

    1. No MOQ limit, one piece sample also available.
    2. OEM and ODM available.
    3. We can take care of all shipping issues.
    4. After-sale service.


    FAQ
    1. Shipping time for an order
    We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
    2. Quality Control
    Strict inspection and testing for every order before shipping out .
    3. How can we trust your company?
    We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
