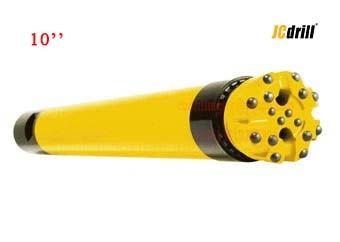

    2 Inch - 12 Inch Down The Hole Hammer Medium High Air Pressure Wear Resistant

    Ask Lasest Price
    Brand Name : JCDRILL
    Model Number : All Models
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 100000 Pcs/Year
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    2 Inch - 12 Inch Down The Hole Hammer Medium High Air Pressure Wear Resistant

    2 Inch - 12 Inch Down The Hole Hammer Medium High Air Pressure Wear Resistant


    Description
    DTH drilling tool is a kind of drilling system which uses compressed air as motivation, makes drilling impact motivation parts down the hole, to control the piston reciprocating motion by the distribution device in the hammer, and then impacts the DTH bit in the front of the hammer to transit the impacting power to the bit. The DTH bit in the front of the hammer breaks the rock to drill hole.

    At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain. At the drilling hole of dia.105mm-dia.254mm, a plenty of the DTH drilling tools are used.


    Application

    Down The Hole Hammer is mainly used in underground mining and quarrying ,water well drilling


    Advantages:
    -Valveless air distribution. More reliable.
    - Simple design of the piston. Long life.
    - More efficient energy transfer, fact drilling speed, lower air consumption and lower oil consumption.
    - Fewer internal parts, simple structure, long life, less failure and easier to maintain because all the parts are heat treated.
    - Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.

    DTH hammers specifications:

    DHD/COP series DTH HAMMERS
    DTH hammer typeDHD35DHD340DHD350DHD360DHD380DHD1120
    Bit shankIR3.5COP44 DHD340COP54 DHD350RCOP64 DHD360COP84 DHD380DHD1120
    Hole range(mm)Φ90-115Φ110-135Φ135-155Φ155-203Φ195-254Φ305-445
    Connection threadAPI 2 3/8” Reg.API 2 3/8"RegAPI 2 3/8"RegAPI 3 1/2"RegAPI 4 1/2"RegAPI 6 5/8"Reg
    API 3 1/2"Reg
    Working pressure1.0-1.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa
    QL series DTH HAMMERS
    DTH hammer typeQL40QL50QL60QL80
    Bit shankQL40QL50QL60QL80
    Hole range(mm)Φ110-135Φ135-155Φ155-203Φ195-254
    Connection threadAPI 2 3/8"RegAPI 2 3/8"RegAPI 3 1/2"RegAPI 4 1/2"Reg
    API 3 1/2"Reg
    Working pressure1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa
    SD series DTH HAMMERS
    DTH hammer typeSD4SD5SD6SD8SD10SD12
    Bit shankSD4SD5SD6SD8SD10SD12
    Hole range(mm)Φ110-135Φ135-155Φ155-203Φ195-254Φ254-311Φ305-445
    Connection threadAPI 2 3/8"RegAPI 2 3/8"RegAPI 3 1/2"RegAPI 4 1/2"RegAPI 6 5/8"RegAPI 6 5/8"Reg
    API 3 1/2"Reg
    Working pressure1.5-2.0Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa
    MISSION series DTH HAMMERS
    DTH hammer typeMISSION4MISSION5MISSION6MISSION8
    Bit shankMISSION4MISSION5MISSION6MISSION8
    Hole range(mm)Φ110-135Φ155-190Φ155-203Φ195-254
    Connection threadAPI 2 3/8"RegAPI 2 3/8"RegAPI 2 7/8"RegAPI 4 1/2"Reg
    API 3 1/2"RegAPI 3 1/2"Reg
    API 2 7/8"Reg2 7/8"IF
    Working pressure1.2-2.0Mpa1.3-2.3Mpa1.5-2.5Mpa1.5-3.0Mpa
    NUMA series DTH HAMMERS
    DTH hammer typeNUMA100NUMA120NUMA125
    Bit shankNUMA100NUMA120NUMA125
    Hole range(mm)Φ254-311Φ305-445Φ305-445
    Connection threadAPI 6 5/8"RegAPI 6 5/8"RegAPI 6 5/8"Reg
    Working pressure1.0-2.5Mpa1.0-2.5Mpa1.0-2.5Mpa


    Packing

    Delivery

    FAQ
    1. Shipping time for an order
    We have many stock. As usual, we can delivery the goods as soon as we get the full payment.
    2. Quality Control
    Strict inspection and testing for every order before shipping out .
    3. How can we trust your company?
    We support Alibaba trade insurance. Protect products quality, shipment on time and your covered amount.
    4. After Sales Service
    Free replacement will provide once the failure confirmed caused by our product quality.
    5. Do you offer OEM service
    Yes,we offer OEM service if you have any regular requirements
