DTH API Drill Tube Precision Ground Drill Rod For Water Well Hole Drilling
Description
Drill pipe is designed to allow the introduction of a drilling
fluid or air to the bit and to provide the mechanism to transfer
energy developed by the drill motor to the bit. The correct
selection of drill pipe, in most instances, determine how
successful you are and what options you have as far as depth, bore
hole size, and push and pull
down ability.
The selection of drill pipe is one of the most important decisions
mainly due to cost and rig
If you need, please contact us freely.
Application
Technical Parameters of DTH Drill Pipe (Outer Flat Drill Rod):
Diameter | Length | Wrench Flats | Threads |
50-194mm | 500-10700mm | 40,57,65,75,83,95mm | F42×10 F48×10 2 3/8''API REG 2 7/8''API REG 3 1/2''API REG 2 3/8''API IF 3 1/2”BECO 4”BECO 4 1/2”BECO 5 1/4”BECO |
Outer diameter | Thread | Wall thickness | Length | Wrench flat | Weight |
mm | mm | mm | mm | Approx Kg | |
76 | 2-3/8 API REG | 5.5 | 1000 | 57 | 17 |
1500 | 22 | ||||
2000 | 26 | ||||
3000 | 35 | ||||
1000 | 65 | 17 | |||
1500 | 22 | ||||
2000 | 26 | ||||
3000 | 35 | ||||
6.5 | 3000 | 46 | |||
4500 | 56 | ||||
6000 | 73 | ||||
89 | 2-3/8 API REG | 5.5 | 1000 | 65 | 20 |
1500 | 25 | ||||
2000 | 30 | ||||
3000 | 40 | ||||
6.5 | 1000 | 21 | |||
1500 | 26 | ||||
2000 | 32 | ||||
3000 | 45 | ||||
4500 | 65 | ||||
6000 | 84 | ||||
102 | 2-3/8 API REG | 6.5 | 1000 | 75 | 25 |
1500 | 33 | ||||
2000 | 40 | ||||
3000 | 55 | ||||
4500 | 78 | ||||
6000 | 100 | ||||
2-7/8 API REG | 1000 | 83 | 25 | ||
1500 | 33 | ||||
2000 | 40 | ||||
3000 | 55 | ||||
4500 | 78 | ||||
6000 | 100 | ||||
114 | 3-1/2 API REG | 6.5 | 1000 | 95 | 31 |
1500 | 40 | ||||
2000 | 49 | ||||
3000 | 66 | ||||
4500 | 86 | ||||
6000 | 110 |

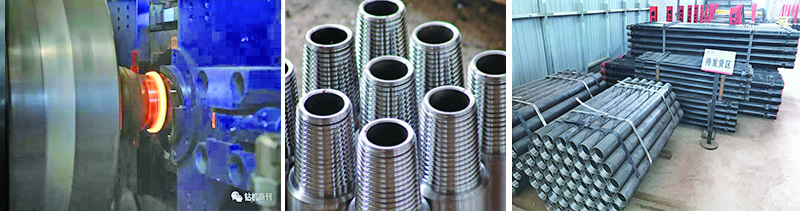

Factory
